The Evolution Aqua Nexus Automatic Gravity 320 is an automated cleaning system upgrade for gravity fed installations of Nexus 320+ and old Nexus 320/310 filters manufactured after 2006.

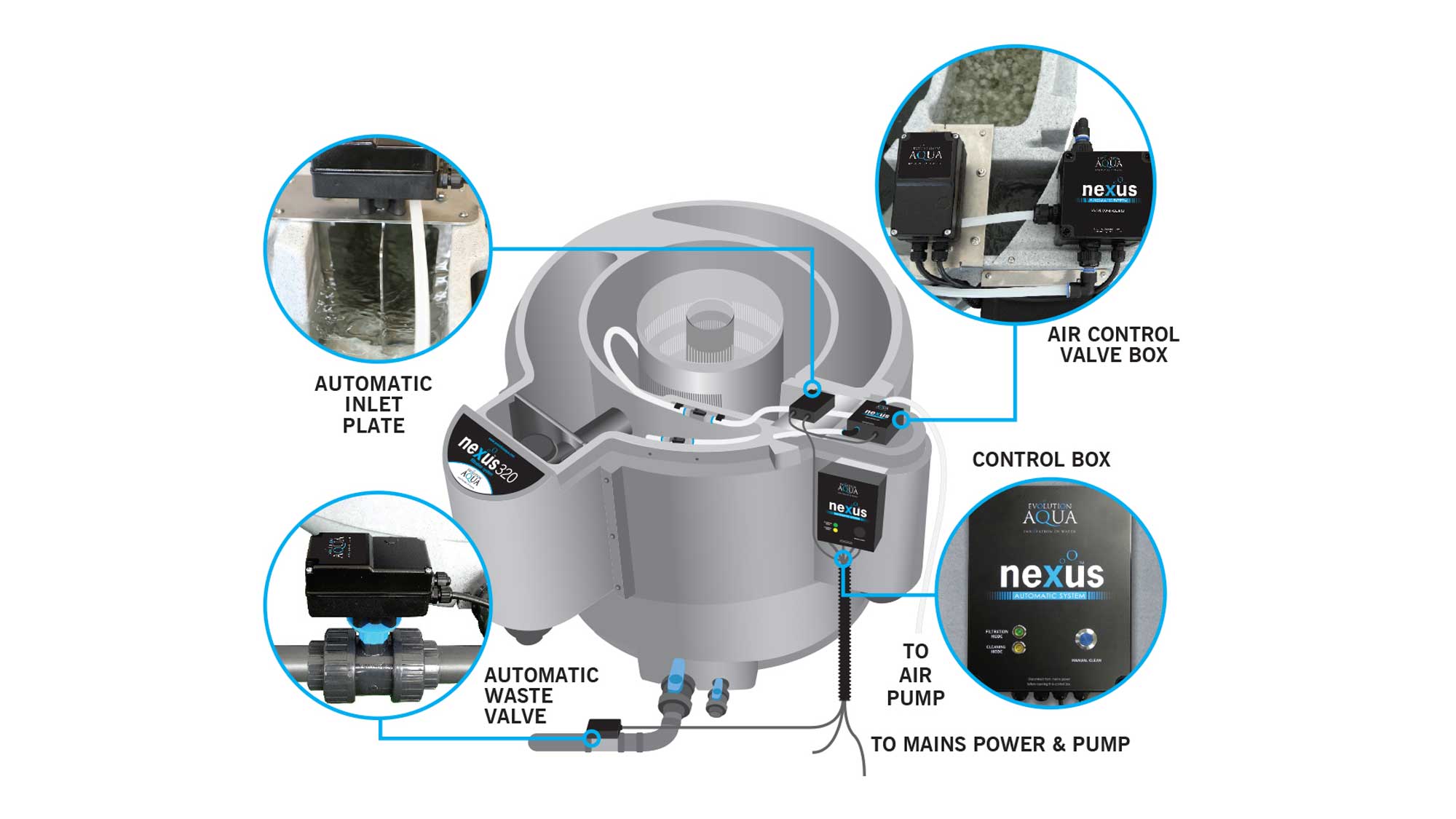

The Nexus Automatic Gravity 320 includes a control box which connects up to an automated waste valve, air pump control box and an automatic inlet slide plate (for gravity fed models only). Once installed and connected to your pond pump and mains power the system will carry out cleaning cycles at timed intervals or when pressing the manual clean button.

Physically turning ball valves and manually switching pumps on and off will now be a thing of the past thanks to the Nexus Automatic System. All of the key processes that form the cleaning cycle are now controlled automatically with this easy to install kit.

Nexus Automatic Gravity 320 cleaning cycle:

• Adjustable timer kicks in to start a cleaning cycle
• Control box automatically switches circulating pump off
• The water level in the Nexus equalises
• Inlet valve closes whilst at the same time air is diverted from the outer bio chamber to the EAZY to clean the media
• After the media has been cleaned, the waste valve opens
• EAZY is drained to waste and inlet valve opens for a final flush of the EAZY
• The waste valve closes
• Air is diverted back from the EAZY to the bio chamber
• Circulating pump is switched back on
• Nexus returns to filtration mode

Nexus Automatic Gravity 320 key features:

• Hassle free way to clean Nexus filtration systems
• Automates the cleaning process of the Nexus320+ and old Nexus 320 and 310 filters (post 2006 models only)
• Electronic control box automatically operates valves and pumps
• Adjustable timer controls the frequency of the automatic cleaning cycle to suit the user’s needs
• Easy to set up for multiple cleaning cycles
• Manual cleaning cycle can be carried out if needed, at the touch of a button
• 1 year warranty
